Product Name: Revolving Fork Clamps

Fork Clamps

• A pressure retaining valve is equipped to avoid damage to the goods due to abrupt crack of oil pipe.
• High safety performance is ensured for its two-way hydraulic rotation within 360°and self locking at any angle.
• Every connecting pin and axle are made of alloy and manufactured through three-process treatment.
• With compact structure, beautiful, efficient and easy to operate, raising working efficiency.
• Suitable for any kind of forklift.

Product Parameters

Inquiry

Product Parameters

Applied to the carrying, loading, unloading and stacking of various kinds of soft bale goods such as waste paper, cased goods, waste plastics, chemical fiber, etc, without pallets or with regular pallets.

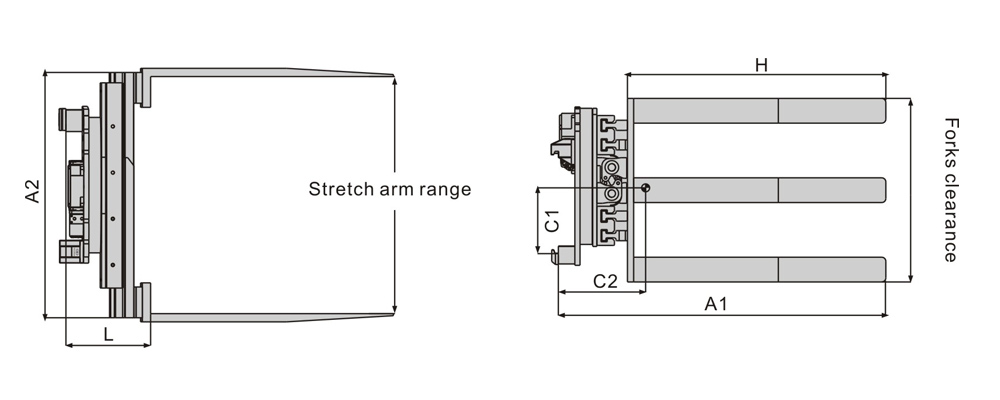

Model	Carrying Capacity	Frame dimension	Length of fork	Opening range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Verticla Center Gravity
	Kg	A1×A2(mm)	(mm)	(mm)		Kg	L(mm)	C2(mm)	C1(mm)
RDM20A-D19C	2000	1640×1100	1200	620-1900	3	1025	409.5	352	293
RDM20A-D20C	2000	1640×1200	1200	680-2000	3	1044	409.5	355	298
RDM20A-D21C	2000	1640×1200	1200	730-2100	3	1065	409.5	355	298

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and rotation are added with 1 more oil circuit respectively.
3.A stands for standard, D, revolving six-fork ,and C, fork length.
4.The various types listed above are the common products and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
